| 产品型号 |

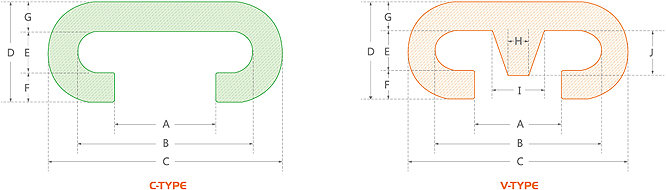

SKG扶手带按截面形状分为C型和V型（见示意图）。您须按照您的自动扶梯或自动人行道选择对应型号的扶手带。如现场扶手带尺寸与以下数据不一致，请与我们联系。
| SKG TYPE | A | B | C | D | E | F | G | H | I | J |
| C100 | 33 | 62 | 82 | 34 | 12 | 10 | 12 | |||
| C200 | 39 | 63 | 83 | 32 | 12 | 8.8 | 10.4 | |||
| C300 | 42 | 68 | 88 | 35 | 15 | 10 | 10 | |||
| V300 | 42 | 68 | 88 | 35 | 15 | 10 | 10 | 7 | 18 | 18 |
| C400 | 38 | 63.5 | 82.5 | 35 | 16 | 9.5 | 9.5 | |||
| C600 | 39 | 62 | 80 | 28.15 | 10.6 | 8.5 | 9.5 | |||
| V600 | 39 | 62 | 80 | 28.15 | 10.6 | 8.5 | 9.5 | 10 | 18 | 13 |
| C700 | 39 | 62.8 | 79.2 | 28.15 | 10.6 | 8 | 9.5 | |||
| V700 | 39 | 62.8 | 79.2 | 28.15 | 10.6 | 8 | 9.5 | 10 | 18 | 13 |
| C800 | 38 | 60 | 76 | 28 | 9.5 | 8.5 | 10 | |||
| V800 | 38 | 60 | 76 | 28 | 9.5 | 8.5 | 10 | 10 | 15.5 | 13 |
|
|||||||||||
